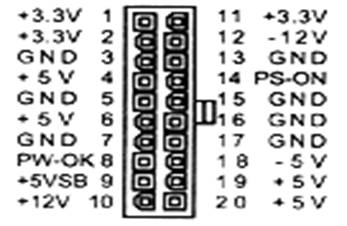

| | ATX :

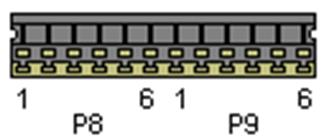

AT:
P8:
Pin |
Name |
Color |
Description |
1 |
PG |
Orange |
Power Good, +5 VDC when all voltages has
stabilized |
2 |
+5V |
Red |
+5 VDC (or n/c) |
3 |
+12V |
Yellow |
+12 VDC |
4 |
-12V |
Blue |
-12 VDC |
5 |
GND |
Black |
Ground |
6 |
GND |
Black |
Ground |
P9:
Pin |
Name |
Color |
Description |
1 |
GND |
Black |
Ground |
2 |
GND |
Black |
Ground |
3 |
-5V |
White or Yellow |
-5 VDC |
4 |
+5V |
Red |
+5 VDC |
5 |
+5V |
Red |
+5 VDC |
6 |
+5V |
Red |
+5 VDC |

|
